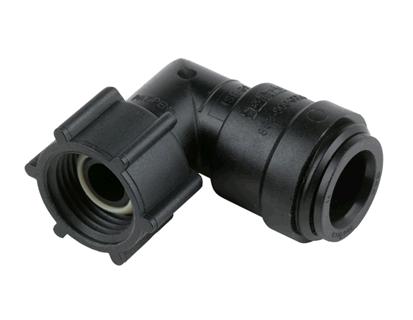

Sea Tech 15mm Female Connector Elbow

This 15 MM NPS female swivel elbow works with copper, CPVC, PEX, LPDE, MPDE, HDPE and polybutylene tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications. Features: Rotates under pressure. No tools required for installation or removal. Zero-leak connections. Works with copper, CPVC, PEX, LPDE, MPDE, HDPE and polybutylene tubing. Can be used for hot and cold water applications, including behind the wall applications.

Usually Stocked Items normally ship immediately or in 1-2 business days. These items are returnable subject to our RETURN POLICY
Quick Access Items normally ship in 1-2 business days. Quick Access Items are returnable subject to our RETURN POLICY but with a restocking fee.
Special Order Items normally need a little extra time to be brought in from our suppliers � in some cases up to 7 business days. Special Orders are returnable subject to our RETURN POLICY but with a restocking fee.
Request Items may take a few days to obtain from our suppliers and pricing may need to be updated. Marine Outfitters will contact you to provide an approximate delivery date and confirmation of price. Request items cannot be returned!

Item / Price
Stock Type
Inventory On Hand 05/10 @ 12:07 PM
Product Code
Order Quantity
3/4" NPS - #1120-1215
$19.99
Usually Stocked Item
1
900000048229
1/2" NPS - #1120-0815
$17.99
Usually Stocked Item
17
ST011120-0815


CUSTOM: 15mm-female-connector-elbow

Currency: Canadian Pricing American Pricing


Fittings: Sea Tech 15mm


Sea Tech fittings are a revolutionary way to set up your water system, using quick connect fittings and universal tubing, rather than traditional barbed and threaded fittings.

Imagine connecting your water lines using a combination of tubes, elbows and fittings that connect in a matter of seconds!

Sea Tech Metric Series products are available in sizes 15mm and 22mm. Sea Tech offers quick connect fittings, valves, modular manifolds and tubing in this world class product offering. Sea Tech's Metric Series line is manufactured in several hi2445gh
performance materials that are FDA approved and NSF-61 certifi ed for contact with drinking water.

FITTING PERFORMANCE RATING:

  • Operating Pressure: Vacuum to 250psi
  • Max Temperature: 1400F @ 100psi / 750F @ 250psi
Sea Tech connectors utlize a swivel nut with NPS straight threads and a cone seal. This allows the installer to thread onto NPT, NPS, BSP and most 1/2" male threads without tools or thread sealant. Simply thread on, hand tight, for a zero-leak seal.
Reducing Tees can be developed by simply snap fitting a Reducing Stem Connector into a Union Tee.
Sea Tech tubing is produced from a high performance, polyethylene material. Sea Tech Tubing is formulated and manufactured in 15MM and 22MM sizes. Sea Tech Tubing is NSF listed, FDA recognized and available in multiple colors for ease of water line identification.

Installing Sea Tech fittings
Cut the tubing to length using the Sea Tech tubing cutter or similar. Inspect the outside diameter of the tubing. It must be free of damage, smooth, and clean.
Measure the insertion depth on the tubing end. Sea Tech connectors have a insertion depth line molded onto the outside of the connector bodies
Make certain to push the tubing completely into the connector until it comes into contact with the internal tubing stop.
To disconnect ensure the system is depressurized before removing connectors. Push the collet in squarely against the face of the fitting. With the collet held in this position, the tubing can be removed. The connectors can then be re-used.
